Utility Meters

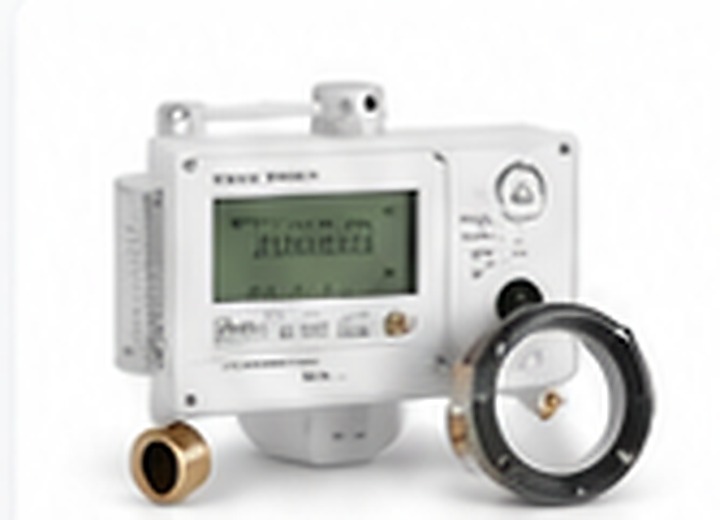

Ultrasonic BTU / Heat Meter
BTU and heat meters measure thermal energy from flow and temperature differential. Nexa Tensor integrates compatible meters into utility billing, EMS and remote-reading applications using project-appropriate communication interfaces.
Specification & project supportSelection, integration, commissioning and lifecycle assistance.
Cooling and heating energy measurement
Flow, supply temperature and return temperature
Delta-T and thermal power monitoring
M-Bus / Modbus / pulse / wireless options by meter model
BACnet / Modbus
M-Bus / Metering
MQTT / API
LoRaWAN / Cellular
Local edge logic
Cloud or on-premise
Overview
Designed to fit a maintainable field-to-platform architecture.
Exact capabilities, interfaces and certifications depend on the selected model and project configuration. They should be confirmed during engineering and procurement.
Suitable for tenant billing and energy analysis
Remote reading and abnormal-consumption monitoring
Technical capabilities
Key specifications and integration context.
| Utility | Chilled water / heating |
|---|---|
| Measurements | Energy, flow, temperatures, delta-T and power |
| Integration | M-Bus, Modbus, pulse or wireless depending on selected meter |
| Use | Tenant billing, plant analysis, district cooling interfaces |
Integration options
Nexa Tensor can connect products to BMS, EMS, utility billing, dashboards and customer applications through project-appropriate gateways, APIs and data models.
- Cooling and heating energy measurement
- Flow, supply temperature and return temperature
- Delta-T and thermal power monitoring
- M-Bus / Modbus / pulse / wireless options by meter model
Applications
Where Ultrasonic BTU / Heat Meter can be used.
Application fit depends on environmental conditions, communications, approvals and the overall system design.
Malls
Integrated with the appropriate field devices, network and software workflow for reliable operation.
Hotels
Integrated with the appropriate field devices, network and software workflow for reliable operation.
Commercial buildings
Integrated with the appropriate field devices, network and software workflow for reliable operation.
District cooling consumers
Integrated with the appropriate field devices, network and software workflow for reliable operation.
Delivery process
From selection to commissioned data.
1
Plan
Confirm application, protocols, power, mounting and network requirements.
2
Install
Mount the product, complete wiring and establish communications.
3
Configure
Set addressing, polling, tags, scaling, alarms and publishing rules.
4
Commission
Test data, controls, resilience, dashboards and handover documentation.
